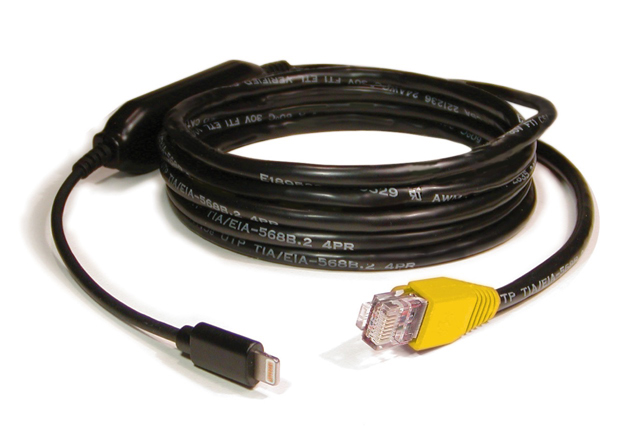

Redpark Ethernet Cable L5-NET

The Redpark Ethernet Cable connects an iPad or iPhone to 10/100 ethernet.
It provides a network connection that delivers higher reliability and lower latency than wireless networking.

Once the Ethernet Cable is connected to an iPad or iPhone (running iOS 10 or later) it is instantly recognized as a network connection that is available for use by an iOS app. Use the “Settings” app on your iPad or iPhone to configure the network connection.

The Redpark Ethernet Cable makes it easy to connect to ethernet devices for field service uses cases. It is also useful for Facebook Live, Periscope and other video streaming apps.
Please read the FAQ to learn more about the functionality and compatibility of this product.




UPC: 013964221282
Warranty: 1 year
Approvals: FCC, CE

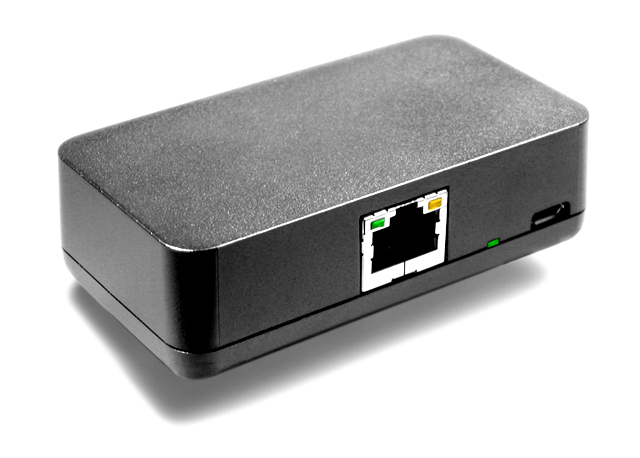

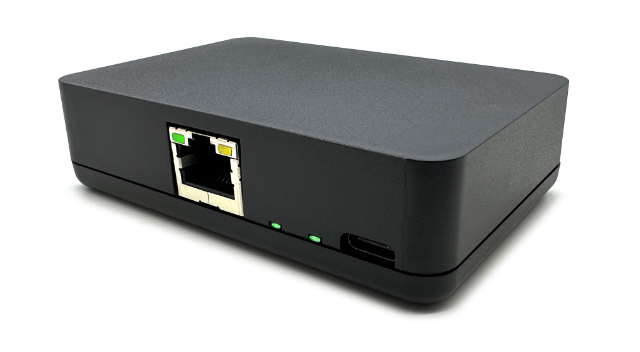

Redpark Gigabit+PoE Adapter L6-NETPOE

Supports Gigabit Ethernet and Power over Ethernet for charging the iPhone or iPad

Connects a Lightning iPad or iPhone to ethernet and to power. This adapter charges the iPad or iPhone using PoE (802.3af) as the power source.
This new 2nd generation ethernet adapter is a specialty version of USB 2 to Ethernet adapter. When it is connected to an iPad or iPhone it is instantly recognized as a network connection that is available for use by any iOS app.

The Redpark Gigabit+PoE Adapter connects iOS devices to ethernet and uses power over ethernet (PoE) to charge the device. This enables iOS devices to receive both data and power over a single Ethernet cable when connected to a PoE-enabled switch or a PoE injector.
The Redpark Gigabit+PoE Adapter is instantly recognized as a network connection. The ethernet connection is available for use by any iOS app and can be configured using the Settings app on the iPad when running iOS 10 (or later).
The Redpark Gigabit+PoE Adapter physically connects to an iOS device using a Lightning to USB Micro B cable (sold separately). It supports 10/100/1000 networking and provides bandwidth up to 225 Mbps.
Connectors:
Ethernet: RJ45 Auto MDX, USB: USB Micro B
The Redpark Gigabit+PoE Adapter is an 802.3(af) Class 0 device.
It requires the PoE-enabled switch or the PoE injector to supply 15.4W.
Please read the FAQ to learn more about the functionality and compatibility of this product.

Redpark recommends the Redpark USB Micro B Cable for Lightning 40cm when using this product with an iPad Pro 12.9". Please read the Redpark USB Lightning FAQ to learn more about this issue.


A Redpark USB Micro B Cable for Lightning (sold separately) is required for operation.

This product also requires a PoE (Power over Ethernet) enabled switch or PoE injector to work.
Please make sure, that your switch supports PoE and meets the above mentioned requirements before you order this product.
If your switch does not provide PoE ports, you should select the L6-NETAC product instead which has its own power supply.

UPC: 013964221459
Warranty: 1 year
Approvals: FCC, CE

Redpark Gigabit+Power Adapter L6-NETAC

Connects to ethernet while simultaneously charging the iPhone or iPad

Connects a Lightning iPad or iPhone to ethernet and to power. This adapter charges the iPad or iPhone using an external 12v power supply.
This new 2nd generation adapter is a specialty version of USB 2 to Ethernet adapter. When it is connected to an iPad or iPhone it is instantly recognized as a network connection that is available for use by any iOS app.

The Redpark Gigabit+Power Adapter provides a simple way to connect an iOS device to ethernet. Plus it uses an external AC power supply to simultaneously charge the iOS device.
The Redpark Gigabit+Power Adapter is instantly recognized as a network connection. The ethernet connection is available for use by any iOS app and can be configured using the Settings app on the iOS device when running iOS 10 (or later).
The Redpark Gigabit+Power Adapter physically connects to the iOS device using a Lightning to USB Micro B cable (sold separately). It supports 10/100/1000 networking and provides bandwidth up to 225 Mbps.
Connectors:
Ethernet: RJ45 Auto MDX, USB: USB Micro B, Power: 3-pin PowerDIN
Please read the FAQ to learn more about the functionality and compatibility of this product.


A Redpark USB Micro B Cable for Lightning (sold separately) is required for operation.

UPC: 013964221466
Warranty: 1 year
Approvals: FCC, CE

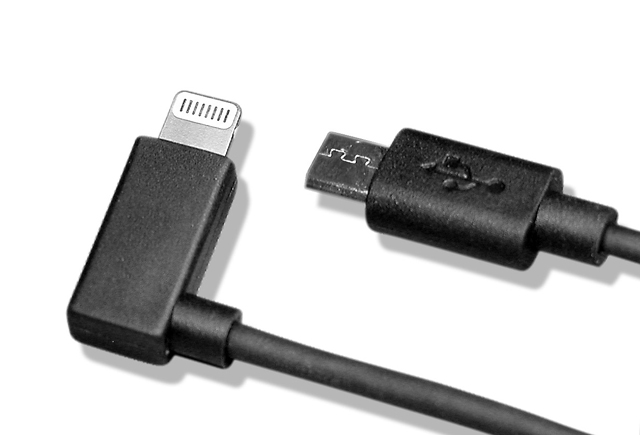

Redpark USB Micro B Cable for Lightning 40cm L90-B-4

The USB Micro B Cable for Lightning is used to connect Redpark Gigabit Ethernet Adapters to an iPad or iPhone.
Length: 40cm - features a right angle Lightning connector.
Please read the FAQ to learn more about this product.




UPC: 013964221411
Warranty: 1 year
Approvals: MFI

Redpark USB Micro B Cable for Lightning 150cm L90-B-15

The USB Micro B Cable for Lightning is used to connect Redpark Gigabit Ethernet Adapters to an iPad or iPhone.
Length: 150cm - features a right angle Lightning connector.
Please read the FAQ to learn more about this product.




UPC: 013964221404
Warranty: 1 year
Approvals: MFI

Redpark USB Micro B Cable for Lightning 300cm L90-B-30

The USB Micro B Cable for Lightning is used to connect Redpark Gigabit Ethernet Adapters to an iPad or iPhone.
Length: 300cm - features a right angle Lightning connector.
Please read the FAQ to learn more about this product.




UPC: 013964221398
Warranty: 1 year
Approvals: MFI

Redpark USB Micro B Cable for Lightning 1000mm L-B-10

The USB Micro B Cable for Lightning is used to connect Redpark Gigabit Ethernet Adapters to an iPad or iPhone.
Length: 100cm - features a straight Lightning connector.
Please read the FAQ to learn more about this product.




UPC: 013964221428
Warranty: 1 year
Approvals: MFI

Redpark USB Micro B Cable for Lightning 3000mm L-B-30

The USB Micro B Cable for Lightning is used to connect Redpark Gigabit Ethernet Adapters to an iPad or iPhone.
Length: 300cm - features a straight Lightning connector.
Please read the FAQ to learn more about this product.




UPC: 013964221466
Warranty: 1 year
Approvals: MFI

Redpark Ethernet+Power Adapter L4-NETP

The Redpark Ethernet+Power Adapter connects an iPad or iPhone to ethernet and to power. It is designed for use in POS systems, kiosks, automation control systems and other use cases where connection to a wired network interface and to power are required.

The Redpark Ethernet+Power Adapter L4-NETP is a specialty version of USB to Ethernet adapter. It provides a general purpose ethernet interface and is compatible with any iOS app that makes use of a Redpark Ethernet SDK.

Please read the FAQ to learn more about functionality and app compatibility.

This cable will only work with iOS apps, which make use of the RedSocket SDK!
Please check the list of compatible apps...

UPC: 013964221244
Warranty: 1 year
Approvals: FCC, CE

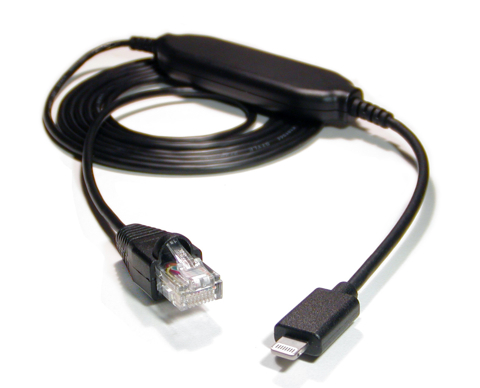

Redpark Ethernet Cable L2-NET

Connects a Lightning iPad, iPhone, or iPod touch to Ethernet.

The Redpark Ethernet Cable L2-NET is a specialty version of USB to Ethernet adapter.
It provides a general purpose ethernet interface - however there are functional limitations which need to be understood and are explained below.
This cable has been designed for use in field service applications. It enables field technicians to use Ethernet to connect an iPad or iPhone to equipment in the field in order to configure or troubleshoot the field equipment.
The cable is compatible with any iOS app that makes use of the RedSocket SDK. A terminal emulator and a web browser are the primary general purpose apps which are used in field service work. "Get Console" (terminal emulator) and "ENet Browser" (web browser) are now available in the App Store for use with the Ethernet Cable. Other third party developers are now working on additional apps.
At the current time Apple does not publish a way for an accessory to access iOS' native network stack via the Lightning connector. So as part of the development effort Redpark created a 2nd network stack. This network stack does not currently support SSL - however nothing prevents an app developer from adding support for SSL if this was important to a given use case.
In order to comply with Apple Made for iPhone (MFI) power budget specifications, as Redpark engineered the Ethernet Cable they made numerous design decisions that reduce power consumption. These power savings have a cost in terms of performance and limit the maximum bandwidth to approx. 5 Mbps.

Cat5e ethernet cable with RJ-45 connector
Cable length: approx. 2.00 meter
Auto-MDIX

Please read the FAQ to learn more about cable functionality and app compatibility.

This cable will only work with iOS apps, which make use of the RedSocket SDK!
Please check the list of compatible apps...

UPC: 013964221275
Warranty: 1 year
Approvals: FCC, CE

Redpark Console Cable L2-RJ45V

Offers Field Engineers a portable and powerful network device management solution

With the Redpark Console Cable L2-RJ45V you can connect an iPhone 5, 5c, 6, 6 Plus, iPad Air, iPad (4G), the iPad mini or the iPod touch (5G) to the console port on Cisco networking gear.
The cable has also been tested with Brocade, Fortinet, H3C, HP, Juniper routers, switches and firewalls and many other network devices which provide a serial console port.
It can be used with the iPhone 5, 5c, 6, 6 Plus, iPad Air, iPad (4G), the iPad mini or the iPod touch (5G) and requires iOS 6 or later.
Serial cable with RJ-45 connector, cable length: approx. 2.00 meter
The Redpark Console Cable L2-RJ45V supports communication at speeds up to 115.2 Kbps.
The RJ-45 connector is wired per Cisco console port spec.

The Redpark Console Cable L2-RJ45V can only be used with specific compatible apps available on Apple's "App Store".

Please check the list of compatible apps...
The Redpark Console Cable L2-RJ45V can not be used with other iOS apps.

This is not an ethernet cable.

UPC: 013964221213
Warranty: 1 year
Approvals: FCC, CE

Redpark Console Cable L2-RJ45V incl. DB-9-Adapter

Offers Field Engineers a portable and powerful network device management solution

With the Redpark Console Cable L2-RJ45V incl. DB-9-Adapter you can connect an iPhone 5, 5c, 6, 6 Plus, iPad Air, iPad (4G), the iPad mini or the iPod touch (5G) to the console port on Cisco networking gear.
The cable has also been tested with Brocade, Fortinet, H3C, HP, Juniper routers, switches and firewalls and many other network devices which provide a serial console port.
It can be used with the iPhone 5, 5c, 6, 6 Plus, iPad Air, iPad (4G), the iPad mini or the iPod touch (5G) and requires iOS 6 or later.
Serial cable with RJ-45 connector, cable length: approx. 2.00 meter
The Redpark Console Cable L2-RJ45V supports communication at speeds up to 115.2 Kbps.
The RJ-45 connector is wired per Cisco console port spec.

The included RJ-45 to DB-9 adapter incl. gender changer allows the use of the Redpark Console Cable L2-RJ45V incl. DB-9-Adapter with network gear which provides a DB-9 console port. Use this adapter for connecting to Cisco, Juniper, HP etc network devices where the console port is a DB-9 (male or female) connector.

The Redpark Console Cable L2-RJ45V incl. DB-9-Adapter can only be used with specific compatible apps available on Apple's "App Store".

Please check the list of compatible apps...
The Redpark Console Cable L2-RJ45V incl. DB-9-Adapter can not be used with other iOS apps.

This is not an ethernet cable.

UPC: 013964221213
Warranty: 1 year
Approvals: FCC, CE

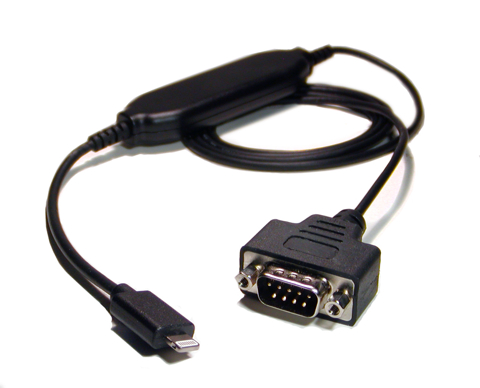

Redpark Serial Cable L2-DB9V3

Enables Development of iOS Apps for Private Use in Homes, Schools and Offices

The Redpark Serial Cable L2-DB9V3 connects an iPhone, iPad or iPod Touch to RS-232 serial devices at baud rates up to 135.2 Kbps.
It can be used with the iPhone 5, 5c, 6, 6 Plus, iPad Air, iPad (4G), the iPad mini or the iPod touch (5G) and requires iOS 6 or later.
The cable is approx. 1.20 meter long and has a male DB-9 connector.

This Serial Cable is used in conjunction with the Redpark Serial Cable SDK to create iOS apps that communicate with a serial device. This solution enables the development of iOS apps for private use in homes, schools and offices.

Important:

The Redpark Serial Cable L2-DB9V3 is not compatible with commercial iOS apps available at the App Store.

• Please check the requirements for developing iOS apps before you order this cable.
• Here you'll find developer resources and the SDK for this cable.
• This cable cannot be used with the "GetConsole" app or any other app available on Apple's "App Store".
  If you would like to use the "GetConsole" app, you should order the Redpark Console Cable L2-RJ45V with DB-9 Adapter.

UPC: 013964221206
Warranty: 1 year
Approvals: FCC, CE

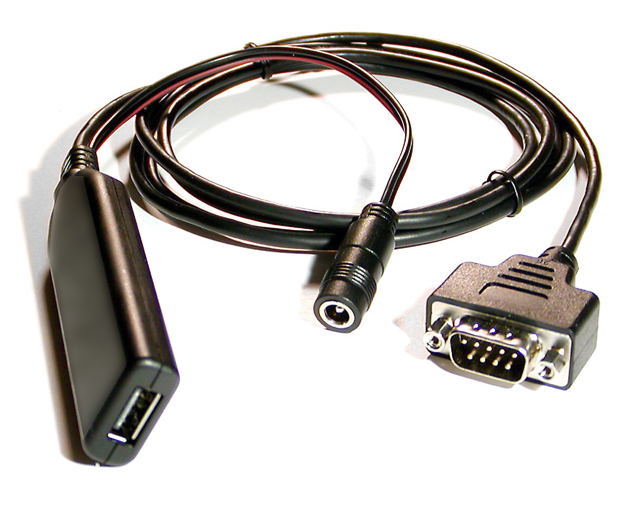

Redpark Serial+Power Adapter L4-SERP

Connects a Lightning iPhone, iPad or iPod touch to an RS-232 serial device and power.

The Redpark Serial+Power Adapter L4-SERP is used in conjunction with the RscMgr SDK to create iOS apps that communicate with a serial device. It is licensed through the Made for iPod (MFI) program for use in private deployments under the terms of an enterprise, education or personal iOS developers license. Under current Apple policy this cable may not be used with apps sold on the App Store.
The Serial+Power Adapter includes a power supply and power cord.
An Apple USB to Lightning Cable is required to connect to the iOS device.

Important:

The Redpark Serial+Power Adapter L4-SERP is not compatible with commercial iOS apps available at the App Store.

• Please check the requirements for developing iOS apps before you order this cable.
• Here you'll find developer resources and the SDK for this cable.
• This cable cannot be used with the "GetConsole" app or any other app available on Apple's "App Store".
  If you would like to use the "GetConsole" app, you should order the Redpark Console Cable L2-RJ45V with DB-9 Adapter.

UPC #: 013964221451
Length: approx. 170 cm
USB Connector: USB-A (female)
Serial Connector: Male DB9
Power Supply: 14 V / 1.6 Amp
Power Connector: DC power jack
(barrel style 2.5 x 5.5 x 11mm)
UPC: 013964221451
Warranty: 1 year
Approvals: FCC, CE

Redpark DEX Cable L2-DEX

The Redpark DEX Cable L2-DEX is used by route drivers in the grocery and vending machine industries. It provides a way to connect iPhone and iPad to a vending machine or to a grocery store’s computer system for direct store delivery (DSD).

Important:

If you plan to develop your own app, then please contact Redpark to obtain an SDK that is compatible with the DEX Cable.

UPC: 013964221183
Warranty: 1 year
Approvals: FCC, CE

Redpark Serial Cable C2-DB9V

Enables Development of iOS Apps for Private Use in Homes, Schools and Offices

The Redpark Serial Cable C2-DB9V connects an iPhone, iPad or iPod Touch to RS-232 serial devices at baud rates up to 115.2 Kbps.
It can be used with the iPhone (4S, 4, 3GS), iPod Touch (4G) and iPad (all models) and requires iOS 5.1 or later.
The cable is one meter long and has a male DB-9 connector.

This Serial Cable is used in conjunction with the Redpark Serial Cable SDK to create iOS apps that communicate with a serial device. This solution enables the development of iOS apps for private use in homes, schools and offices.

Important:

The Redpark Serial Cable C2-DB9V is not compatible with commercial iOS apps available at the App Store.

• Please check the requirements for developing iOS apps before you order this cable.
• Here you'll find developer resources and the SDK for this cable.
• This cable cannot be used with the "GetConsole" app or any other app available on Apple's "App Store".
  If you would like to use the "GetConsole" app, you should order the Redpark Console Cable C2-RJ45 with DB-9 Adapter.

UPC: 013964221015
Warranty: 1 year
Approvals: FCC, CE

Redpark TTL Serial Cable C2-TTL

Enables Development of iOS Apps for Private Use in Homes, Schools and Offices

The Redpark TTL Serial Cable C2-TTL connects iOS devices to Arduino boards and other devices that have a TTL serial interface.
It can be used with the iPhone (4S, 4, 3GS), iPod Touch (4G) and iPad (all models) and requires iOS 5.0.1 or later.
The cable is one meter long and has a male 0.1" pitch 6-pin connector.
Pin out is as follows: RTS, RX, TX, DTR, CTS, GND (orange -> black)
It supports communication at speeds up to 57.6 Kbps.

This cable is not compatible with commercial iOS apps available at the App Store.
The Redpark TTL Serial Cable is used in conjunction with the Redpark Serial Cable SDK to create iOS apps that communicate with a serial device. This solution enables the development of iOS apps for private use in homes, schools and offices.

Important:

The Redpark TTL Serial Cable C2-TTL is not compatible with commercial iOS apps available at the App Store.

• Please check the requirements for developing iOS apps before you order this cable.
• Here you'll find developer resources and the SDK for this cable.

UPC: 013964221077
Warranty: 1 year
Approvals: FCC, CE
